What is a Pegboard Gondola Shelving System?
Pegboard Gondola Shelving is the backbone of modern retail environments. Unlike standard flat-back shelving, a Pegboard Gondola System features a precision-punched perforated metal back panel—typically with standard 25mm (1-inch) hole spacing.
This design transforms the vertical space into a dynamic retail display area, allowing store owners to utilize a wide array of pegboard display hooks, baskets, and accessories.
Constructed from high-tensile cold-rolled steel, our Pegboard Gondola Shelving units are designed to withstand the rigors of high-traffic commercial environments.
Whether you are merchandising heavy power tools in a hardware store or blister-packed goods in a convenience store, our metal gondola shelves provide the structural integrity and aesthetic appeal needed to drive sales.

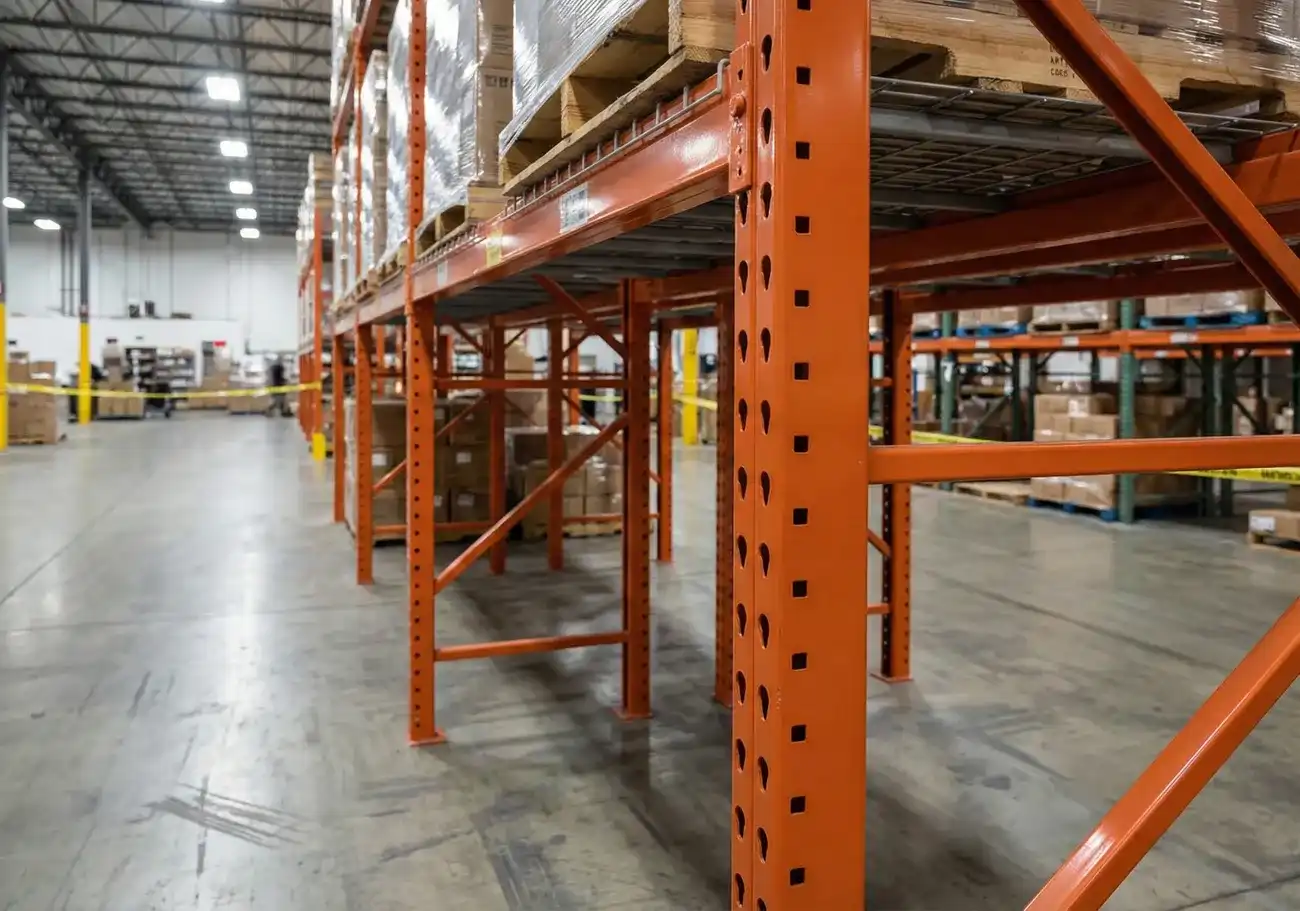

Teardrop Upright Frames

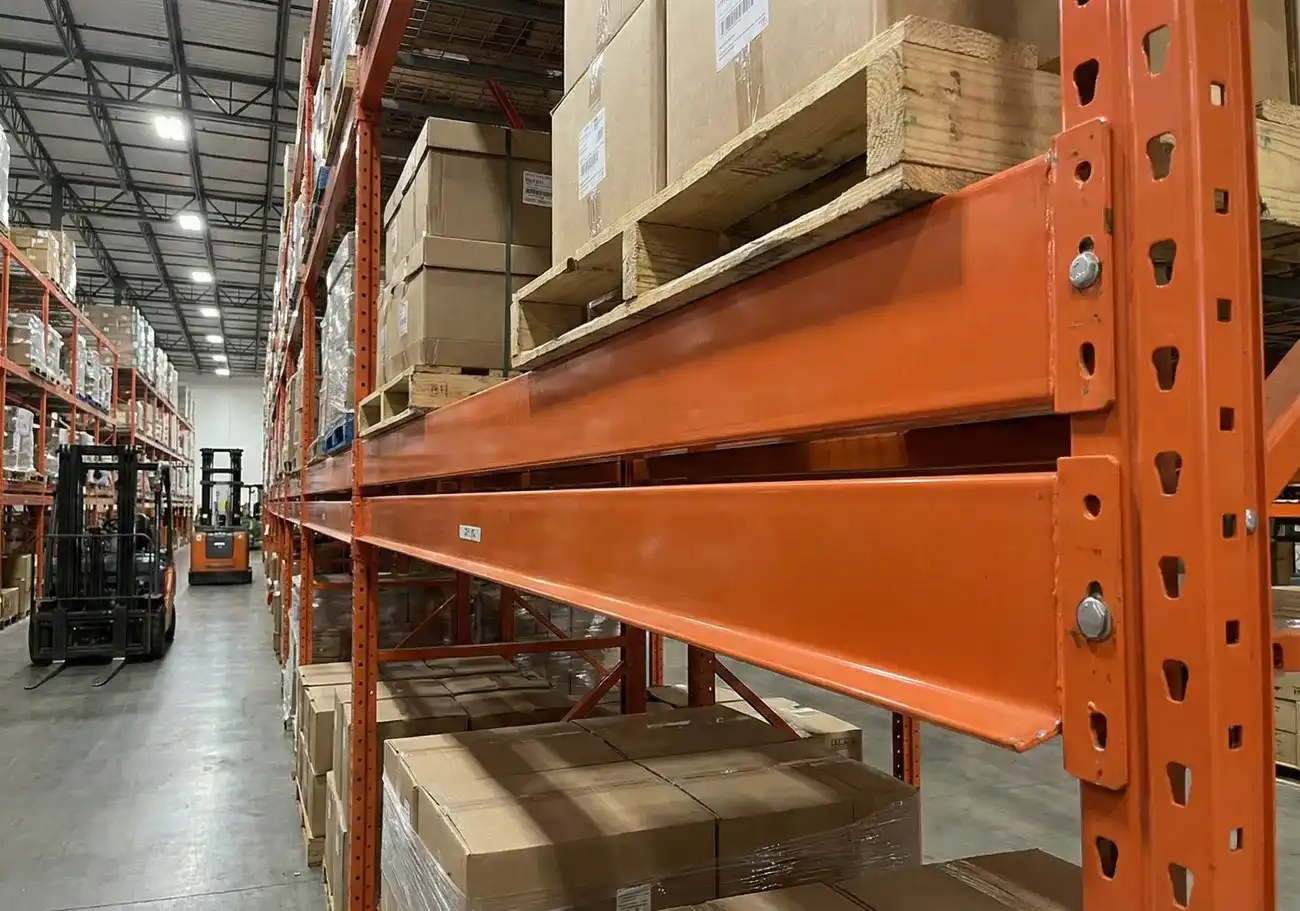

Teardrop Step Beams

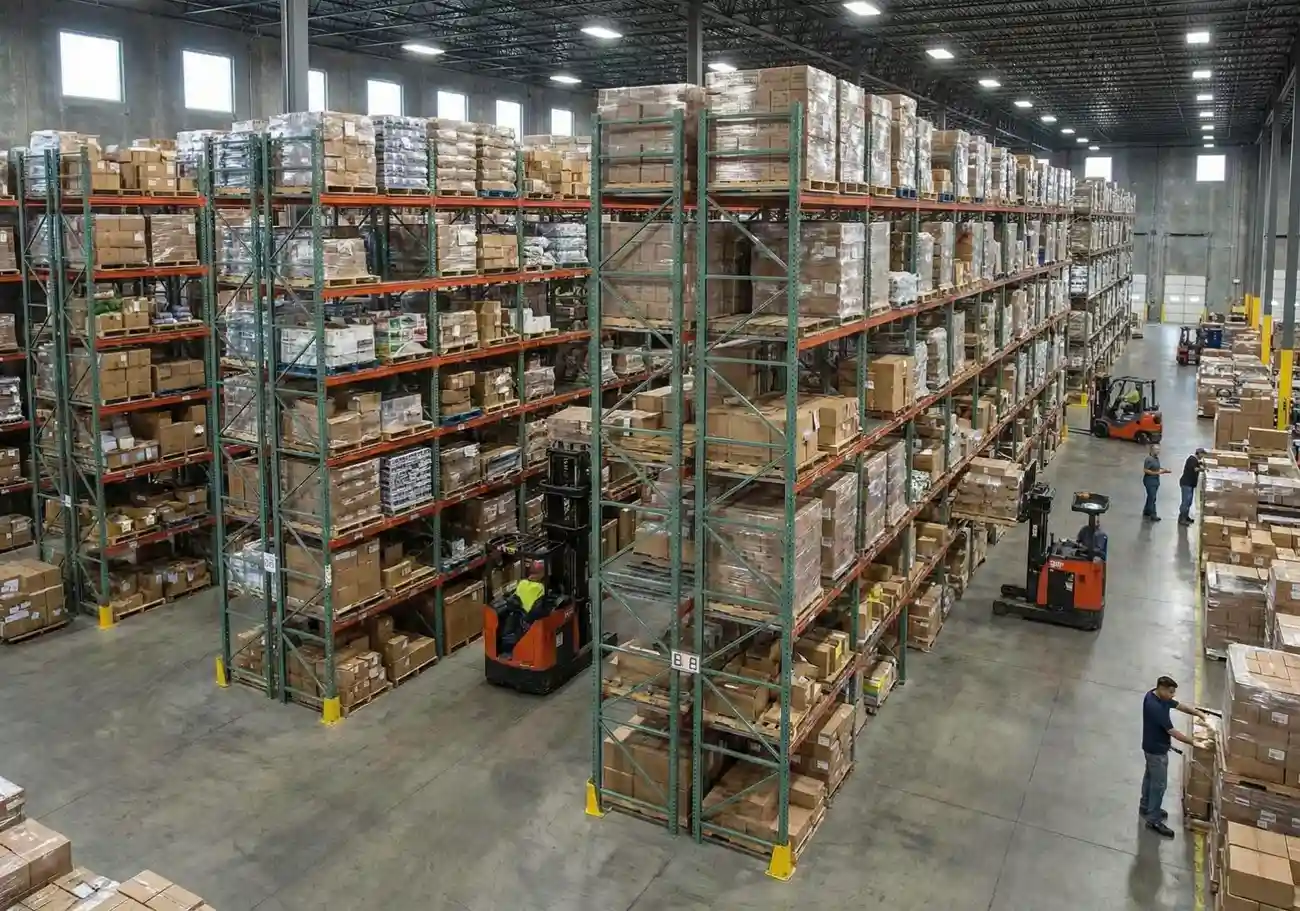

Interlake-Style Compatible Rack

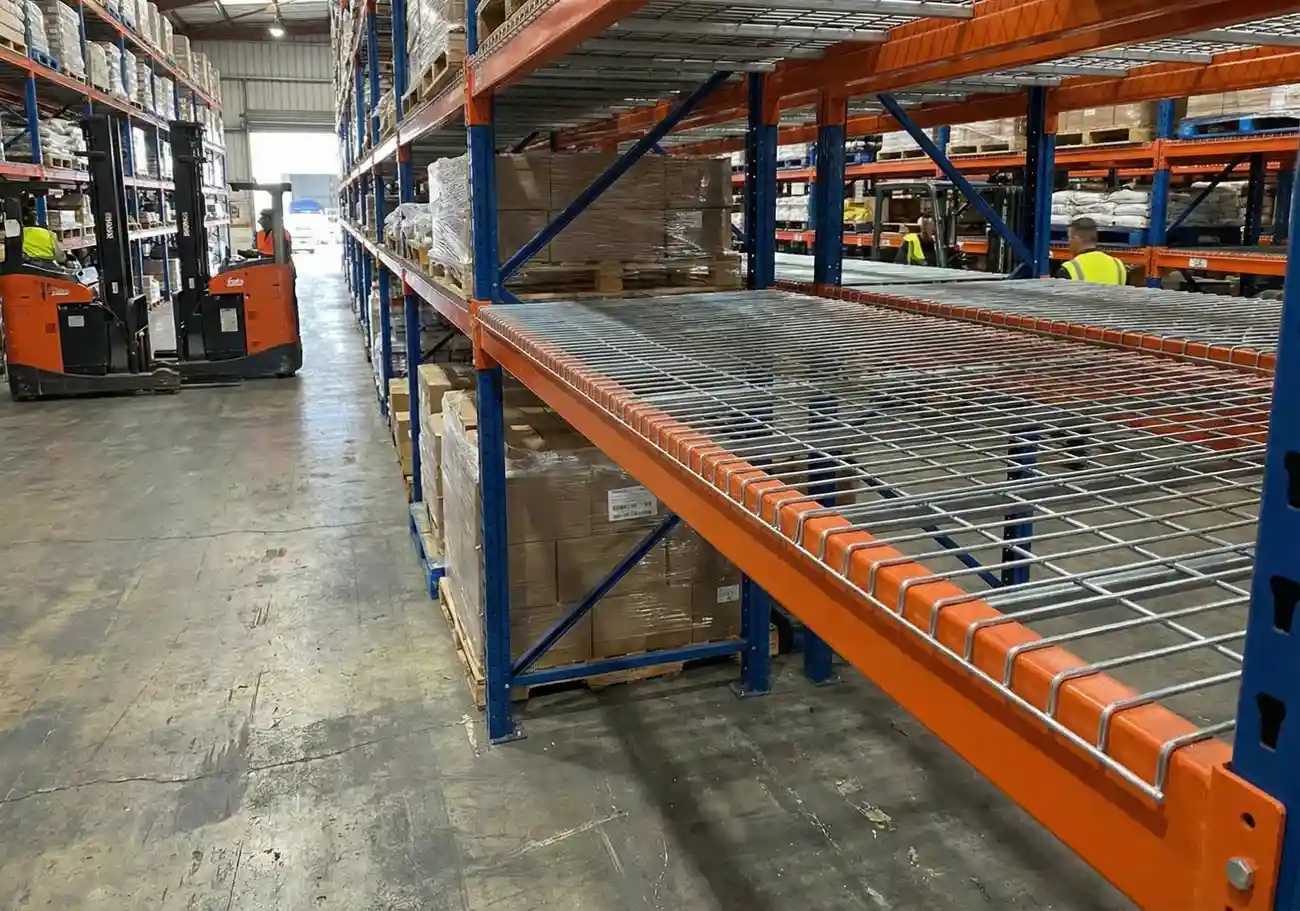

Wire Decking for Teardrop Rack
Metal Pegboard Gondola Features
Universal Compatibility
Fits 95% of existing teardrop uprights.
Boltless Assembly
Quick installation with piston-lock beams.
High-Tensile Steel

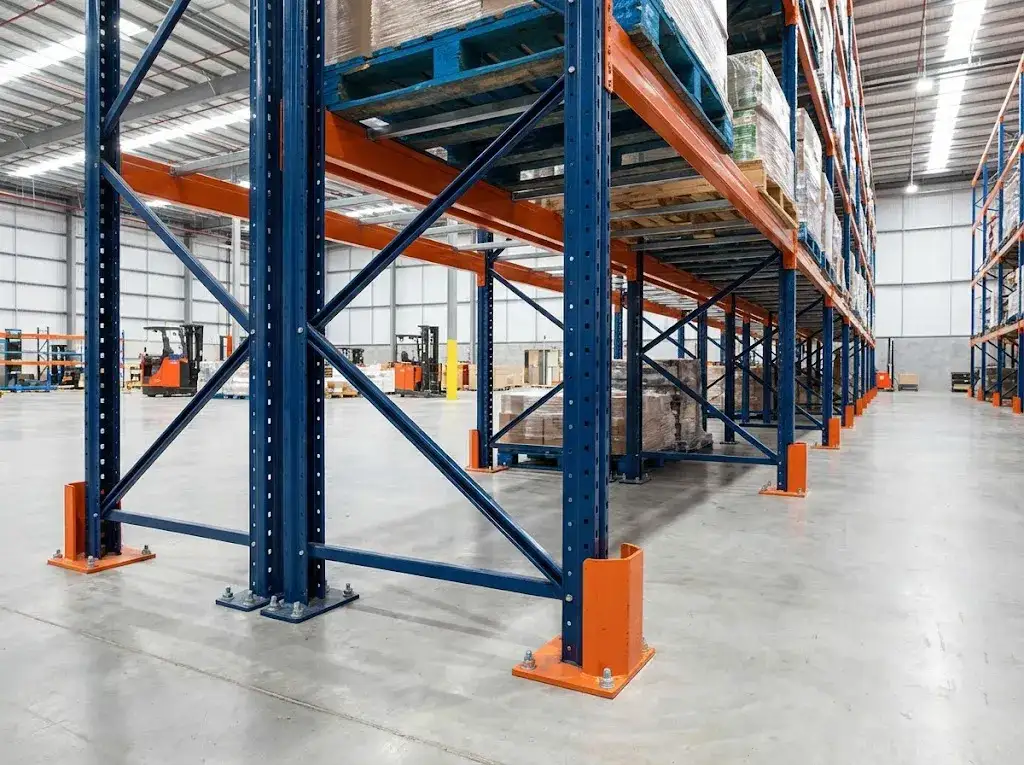

Engineered for heavy loads & seismic zones.
Safety Secure
Automatic locks prevent beam dislodgement.
Roll-Formed Teardrop Racking vs. Structural Steel Racking
| Feature | Teardrop Pallet Racking (Roll-Formed) | Structural Steel Racking (Bolted) |

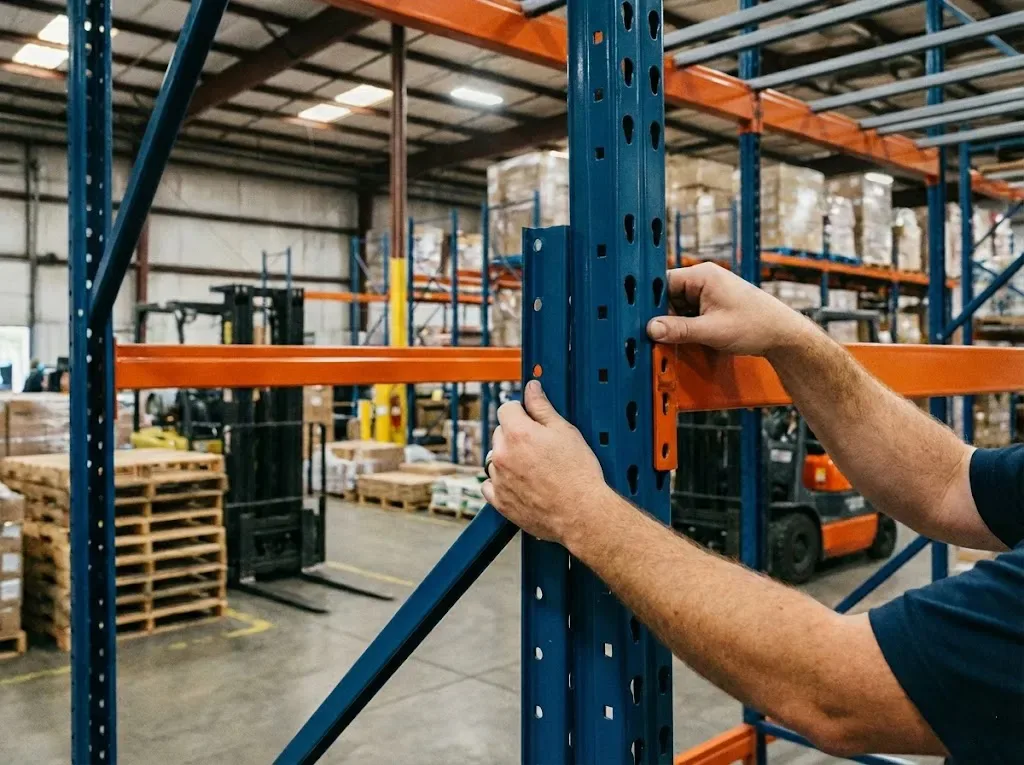

| Connection Type | Boltless Teardrop Connection | Nut & Bolt Structural Connection |
| Installation Speed | Fast Racking Installation | Labor Intensive Assembly |
| Beam Adjustability | 2-Inch Beam Levels | Fixed Bolt Holes |
| System Cost | Cost-Effective Storage Solution | Expensive Heavy Racking |
| Best Application | General Warehouse Pallet Storage | Impact-Prone Heavy Industry |
Modular Design & Versatility
The hallmark of our Pegboard Gondola Shelving is its modularity.
The shelf levels can be adjusted in 50mm increments along the upright posts, allowing you to accommodate products of varying heights.
This flexibility ensures that your store fixtures can evolve as your inventory changes.
Superior Surface Treatment
Every steel shelving component undergoes a rigorous multi-stage surface treatment process. This includes acid washing and phosphating to remove impurities, followed by a high-temperature electrostatic powder coating. This results in a finish that is resistant to corrosion, chipping, and scratches, ensuring your retail shelves look professional for years.
High Load-Bearing Capacity
Safety is paramount in retail. Our Heavy-Duty Gondola Shelving is engineered with reinforced stiffeners under each shelf.
Depending on the configuration, a single shelf level can support between 80kg to 120kg, making it suitable for displaying heavy items like paint cans, motor oil, or bulk food items.
Material Composition & Shelving Manufacturing Process
Quality starts with raw materials. We exclusively use high-grade SPCC Cold Rolled Steel (Q235) for all our supermarket shelving units. Unlike inferior recycled steel, SPCC steel offers superior tensile strength and surface smoothness.
Our manufacturing facility utilizes advanced automated welding robots and CNC punching machines to ensure the dimensional accuracy of every upright post and shelf bracket.
The pegboard holes are punched with zero burrs to ensure safety for both staff and customers. By controlling every step of the shelving manufacturing process, we guarantee a consistent product that meets international quality standards.
Pegboard Gondola Technical Specifications
| Gondola Component | Specification Details | Application Note |
| Material Grade | High-Grade Q235 Cold Rolled Steel (SPCC) | Superior strength vs. Q195 used in budget retail shelves. |
| Upright Post Size | 30x60mm / 40x80mm (Thickness: 1.5mm – 2.5mm) | 40x80mm is recommended for high-bay wall units (>2.1m). |
| Back Panel Type | Perforated Metal Panel (Pegboard) | Also available in Plain Panel or Slatwall. |
| Hole Pattern Pitch | 25mm (Euro/Aus Standard) or 25.4mm (US Standard) | Critical for peg hook compatibility. |
| Shelf Load Capacity | Light (50kg) / Medium (100kg) / Heavy (150kg) | Tested with Uniformly Distributed Load (UDL). |
| Unit Dimensions |
Height: 1.2m – 2.4m Length: 900mm / 1000mm / 1200mm Shelf Depth: 300mm – 570mm |
Custom sizes available for bulk shopfitting orders. |
| Surface Finish | RAL 9001 (Cream), RAL 9010 (White), RAL 9005 (Black) | Custom branding colors supported. |
Gondola Shelving Installation and Maintenance Guide
Assembly Instructions
Our retail shelving systems feature a bolt-free, snap-lock design.
To assemble, simply insert the base leg into the upright post, install the back panels, and snap the shelf brackets into place.
No specialized tools are required, significantly reducing setup time for store fit-outs.
Daily Maintenance
To maintain the longevity of your Pegboard Gondola Shelving, we recommend periodic cleaning with a mild detergent and a soft cloth.
Avoid abrasive cleaners that could damage the powder-coated finish. Regularly inspect the shelf brackets and pegboard hooks to ensure they are seated correctly and not overloaded beyond their rated capacity.
Industry Solutions
Heavy-Duty Hardware Store Shelving
Hardware retail demands durability. Our Metal Pegboard Gondola System is engineered with reinforced back panels to withstand the rigorous weight of power tools, plumbing parts, and automotive fluids.
Unlike standard racks that bow under pressure, our 40x80mm heavy-duty uprights ensure structural integrity.
Pair with our specialized cantilever arms and double hooks to create a rugged, professional display that keeps your heavy inventory safe and accessible.
Pharmacy & Chemist Display Shelving
Maximize your floor space with our hygienic and space-efficient Pharmacy Gondola Shelving.
Finished in a sterile Pure White (RAL 9010) powder coating, these units are designed with narrow base shelves (300mm) to widen your aisles while maintaining high product density.
The precise 25mm pitch pegboard allows for tight spacing of blister packs and cosmetics, while acrylic risers and dividers keep small items organized and customer-ready.
Supermarket & Convenience Store Fixtures
Our modular Supermarket Gondola Shelving adapts instantly to changing planograms. Utilize our high-visibility Gondola End Caps to drive impulse purchases on promotional items.
With multi-angle adjustable shelves that can tilt for gravity feeding, reducing the need for constant staff restocking.
Frequently Asked Questions about Pegboard Shelving
A: Simply measure the distance from the center of one hole to the center of the adjacent hole on the perforated metal back panel. Our standard Pegboard Gondola Shelving features a universal 25mm (1-inch) center-to-center spacing, ensuring compatibility with most global retail display accessories.
Pegboard vs. Slatwall vs. Grid Mesh
We compare Metal Pegboard Gondola Shelving, Slatwall Systems, and Grid Mesh Displays. Discover why a Gondola Shelving Manufacturer recommends metal pegboard for durability.
1. Pegboard Gondola Shelving
As the most widely used back panel system globally, Pegboard (often referred to as “Perforated Panel” or “Volcano Panel” due to the punched hole shape) represents the optimal balance between cost and functionality. Spieth manufactures these panels using high-grade SPCC Cold Rolled Steel, distinct from the entry-level HDF/MDF options often found in the market. Steel ensures the panel resists moisture and prevents the hook holes from tearing under heavy loads.
The core advantage of this system lies in its 25mm (1-inch) center-to-center hole spacing. This dense grid configuration offers retailers maximum merchandising flexibility. Store owners can micro-adjust hook positions to minimize the vertical gap between product rows, thereby achieving the highest possible SKU Density per square meter of floor space.
2. Slatwall Gondola Shelving
Slatwall (Grooved Panel) is the superior choice. These panels feature horizontal grooves running the entire width of the unit, typically spaced at 75mm, 100mm, or 150mm intervals. This linear design creates a modern, furniture-like aesthetic that visually expands the retail space, making it ideal for pharmacies, electronics stores, and fashion boutiques.
From an engineering perspective, standard Slatwall is manufactured from Medium Density Fiberboard (MDF). For heavy-duty applications, Spieth recommends specifying Aluminum Inserts within the grooves to significantly increase the breakout strength of the panel. While slightly more expensive than pegboard, Slatwall offers a premium finish that elevates the perceived value of the merchandise on display.
3. Wire Grid Mesh
Constructed from welded steel wires—typically forming a 50x50mm grid matrix—this system is lightweight and easy to install. Depending on the retail environment, the mesh can be finished with a durable powder coating or a high-gloss chrome plating.
The defining characteristic of Wire Grid Mesh is its transparency. The open structure allows light to pass through and maintains high visibility across the store aisle. While it lacks the solid, clean backdrop of metal pegboard, its low material cost and high versatility make it a practical choice for discount stores, bulk bin cages, and seasonal pop-up shops.
| Feature | Metal Pegboard Gondola Shelving | Slatwall Gondola Shelving | Wire Grid Mesh Shelving |
| Primary Material | SPCC Cold Rolled Steel | MDF (Wood) or PVC | Steel Wire |
| Load Capacity | High (Excellent for Heavy Tools) | Medium (High if reinforced) | Low to Medium |
| Merchandising Density | Maximum (25mm adjustability) | Limited (Fixed groove spacing) | Medium (50mm grid spacing) |
| Durability | Excellent (Water/Rust Resistant) | Poor (Prone to chipping/swelling) | Good (But hard to clean) |
| Cost Efficiency | Best Value (High ROI) | Expensive | Cheapest Initial Cost |
| Visual Aesthetics | Clean, Solid, Industrial | Premium, Furniture-like | Cluttered, Transparent |
| Ideal Application | Supermarkets, Hardware, Pharmacy | Clothing Boutiques, Tech Stores | Discount Stores, Pop-ups |
| Spieth Recommendation | ⭐⭐⭐⭐⭐ (Top Choice) | ⭐⭐⭐ | ⭐⭐ |
Why Metal Pegboard Gondola Shelving Dominates Retail
1. Merchandising Density and Planogram Efficiency
A major limitation of Slatwall Gondola Shelving is the “Dead Space” problem caused by fixed vertical increments (typically every 100mm or 150mm). If you are merchandising small, high-margin items—such as batteries, cosmetics, or blister-pack stationery—that are only 50mm high, a standard Slatwall system forces you to waste nearly 50mm of vertical space between every row.
Spieth Metal Pegboard Gondola Shelving eliminates this waste through “Micro-Adjustments.” With holes punched at precise 25mm (1-inch) intervals, you can position Gondola Shelving Hooks with extreme accuracy just above the product below.
The Math: On a standard 1.8m high Gondola Shelving Unit, this 25mm precision often allows retailers to accommodate 2 to 3 extra rows of product compared to a Slatwall system. Over a 500-store chain, this small adjustment translates into millions of dollars in additional inventory capacity without increasing the floor footprint.
2. Load Capacity and Structural Integrity
Many suppliers compromise quality by offering cheap Masonite (MDF) pegboard. In humid environments—such as garden centers, tropical regions, or stores with fluctuating HVAC—wood absorbs moisture and swells. Over time, this causes the hook holes to tear out under load, leading to product damage and safety hazards.
As a Gondola Shelving Manufacturer, Spieth produces Metal Pegboard Gondola Shelving using high-grade SPCC Cold Rolled Steel. Our panels are ribbed and folded to resist torsion, ensuring they remain perfectly flat even when fully loaded with heavy tools or automotive parts.
Unlike wire mesh where hooks can wobble left and right, the flat steel surface holds the hook firmly in place, keeping products facing forward perfectly. A properly installed metal pegboard system also acts as a rigid brace between uprights, significantly reinforcing the overall stability of the Double Sided Gondola Shelving bay.
3. Visual Merchandising and Visual Noise
While Wire Grid Mesh Gondola Shelving is often marketed as “airy,” it frequently creates Visual Noise that distracts customers. On a center-store Double-Sided Gondola Shelving Unit, the transparency of the mesh allows customers to see the back of the products hanging on the other side of the aisle, creating a cluttered and messy visual experience. Similarly, on wall units, mesh reveals the wall behind the shelving, exposing potential paint damage, electrical conduits, or dirt.
Metal Pegboard Gondola Shelving solves this by providing a solid, opaque canvas. Whether you choose our standard Gloss White, Matte Black, or Hammertone Grey, the panel creates a high-contrast background that blocks visual distractions.
Conclusion
View your Retail Gondola Shelving System not as a disposable expense, but as a capital asset with a 10-year operational lifespan. A common procurement error is compromising on the Gondola Shelving Back Panel specification to secure a marginal 5% reduction in initial outlay. This short-term saving often degrades Store Revenue Potential through reduced Merchandising Density, increased maintenance liability, and potential structural failures under heavy inventory loads.
For retailers prioritizing long-term durability, maximum SKU Density, and professional aesthetics, the engineering data supports one clear winner: Metal Pegboard Gondola Shelving. As a Gondola Shelving Manufacturer, Spieth advises against using inferior materials like MDF or Wire Mesh for high-traffic or heavy-duty retail environments.
If you are ready to upgrade your retail infrastructure with Factory-Direct Pricing. Contact the Spieth Engineering Team today for a comprehensive consultation and a custom 3D Gondola Shelving Layout tailored to your specific floor plan.
