What is double deep pallet racking?
Double deep racking is not the same as drive-in racking or mobile racking; it is a separate category of racking system. These racking systems all have unique components. Instead, Double deep racking refers to a configuration used with standard adjustable pallet racking.
This configuration consists of two rows of standard adjustable pallet racking tracks back-to-back. However, access is only possible from one side. Forklifts can directly retrieve pallets from the front positions. To access the rear pallet positions, operators must use specialized equipment: forklift extension poles or forklifts equipped with telescopic forks.
This setup creates a pallet storage solution with higher density than standard selective racking. Crucially, compared to ultra-high-density systems like drive-in racking, it retains a significant degree of direct pallet access selectivity. This balances space utilization and operational costs.
Types of Double Deep Pallet Racking
Heavy Duty Double Deep Racking
Cold Storage Double Deep Racking

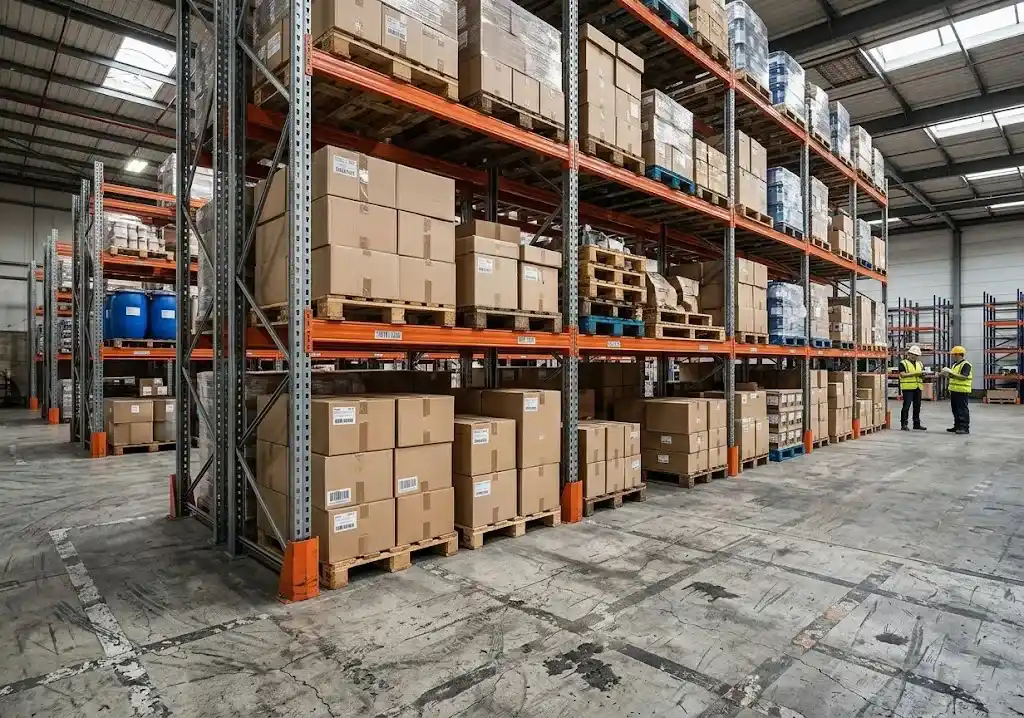

Galvanized Double Deep Racking
Powder Coated Double Deep Racking

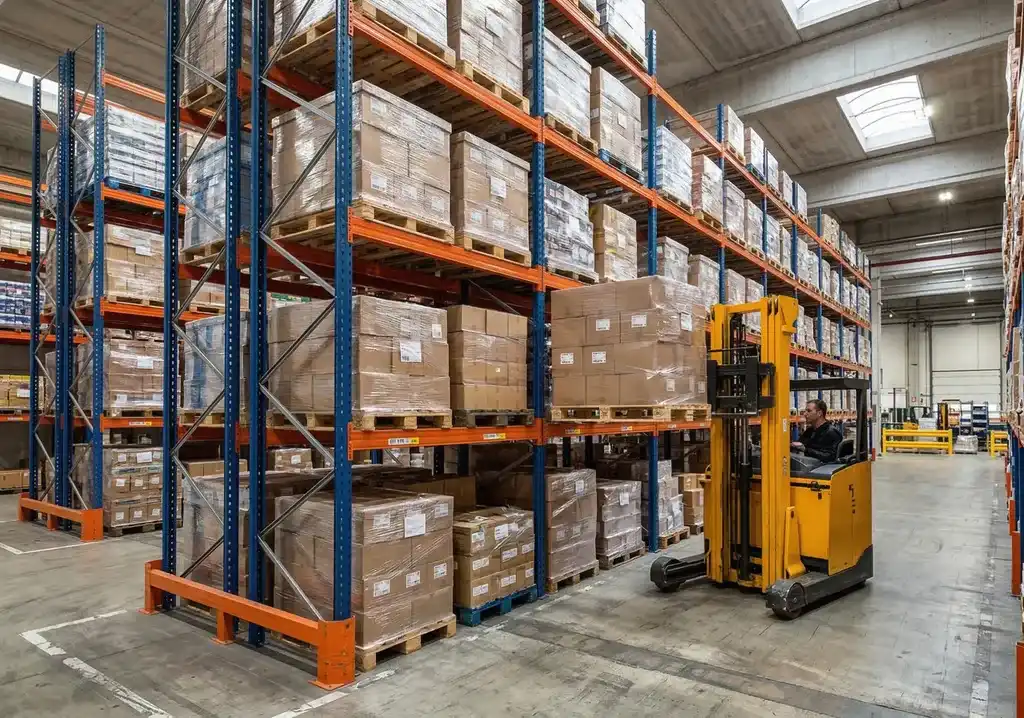

Teardrop Double Deep Racking
Adjustable Double Deep Racking
High Rise Double Deep Racking

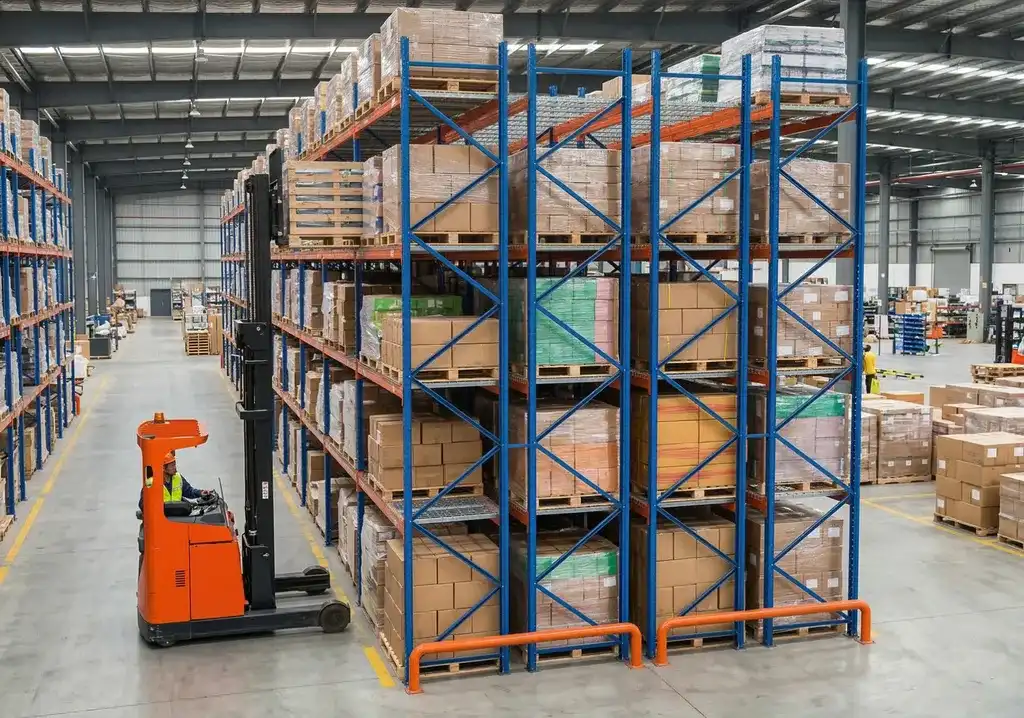

Back-to-Back Double Deep Racking
Why Choose Double Deep Racking?
Maximise Storage Space
Reducing the number of aisles in your warehouse layout directly translates to a significant boost in usable storage area.
High Levels of Productivity
Pallets can be loaded and unloaded with impressive speed and efficiency, minimizing handling time per load.
Reduce Damage
Implementing guide rails on upper storage tiers significantly enhances operational safety and accuracy.
Advantages of double deep racking systems
- Double deep pallet racking boosts storage density significantly over standard adjustable pallet racking, maximizing space without major operational changes.
- Access remains efficient, with roughly 50% of pallets immediately accessible, supporting good product rotation. The double deep pallet racking system typically achieves over 80-90% space utilization.
- This double deep storage solution balances selective pallet racking and high-density systems, operating on LIFO (Last-In, First-Out) inventory management.
- It increases usable space by eliminating unnecessary aisles and handles virtually any standard pallet load.
- Installation and modification are quick, similar to adjustable pallet racking, reducing handling time and labor for faster stock rotation.
- The modular design allows easy reconfiguration or expansion as needs change, offering long-term flexibility.
- Safety is enhanced through integrated accessories like guards and netting. Components use durable pre-galvanized steel to ASTM standards, often including traceability features.
How does double deep pallet racking work?
- Storage Configuration: Instead of one pallet deep, this system stores pallets two positions deep. This reduces the aisle-to-rack ratio, maximizing floor space utilization.
- Specialized Material Handling Equipment: To access the rear pallet position in a Double Deep Pallet Racking setup, operators must use a specialized reach truck equipped with double deep telescopic forks or a pantograph mechanism.
- Inventory Management Principle: Because the front pallet obstructs the rear pallet, a Double Deep Pallet Racking system operates on a FILO (First-In, Last-Out) or LIFO (Last-In, First-Out) inventory management model. It is the perfect storage solution for storing multiple pallets of the same SKU (Stock Keeping Unit).
What Forklift is Required for Double Deep Pallet Racking?
- Deep Reach Truck Capabilities: The designated forklift for a Double Deep Pallet Racking system must have the lifting capacity and mast stability to handle your maximum pallet weight even when the forks are fully extended into the second deep position.
- Aisle Width Requirements (AST): While a Double Deep Pallet Racking setup saves overall floor space, it requires a specific Right Angle Stacking Aisle (AST) for the reach truck to operate. Typically, the aisle width for a Double Deep Pallet Racking layout ranges from 2,800 mm to 3,400 mm (110 inches to 135 inches), strictly depending on the reach truck’s turning radius.
- Base Leg Clearance (Straddle Legs): Many deep reach trucks have straddle base legs that must slide under the bottom beam or the first-level pallet. When designing your Double Deep Pallet Racking, our factory engineers will calculate the exact bottom beam clearance required to accommodate your specific reach truck’s base legs.
- Operator Vision Systems: Because the rear pallet in a high-bay Double Deep Pallet Racking system is difficult to see from the ground, we highly recommend that the reach trucks are equipped with mast-mounted camera systems or fork-tip cameras to ensure safe loading and unloading operations.
What are the Load Capacity Specifications for Double Deep Pallet Racking?
The standard load capacity for a heavy-duty Double Deep Pallet Racking system typically ranges from 1,000 kg to 3,000 kg (2,200 lbs to 6,600 lbs) per pallet position. Because a Double Deep Pallet Racking configuration stores pallets two-deep, the total weight on the concrete slab and the structural upright frames is highly concentrated. As a professional manufacturer, we engineer the load capacity specifications for Double Deep Pallet Racking based on your specific inventory weight, beam profile, and upright frame thickness to ensure maximum safety and warehouse storage efficiency.
Standard Load Capacity Parameters for Double Deep Pallet Racking
- Load Capacity Per Pallet Position: Engineered to support 1,000 kg to 3,000 kg per pallet, making the Double Deep Pallet Racking ideal for heavy-duty industrial warehouse storage.
- Beam Load Capacity (Per Level): A standard beam level in a Double Deep Pallet Racking unit (typically holding 2 pallets side-by-side) can safely support between 2,000 kg and 6,000 kg. Our factory utilizes high-tensile strength steel to prevent beam deflection under maximum load.
- Upright Frame Load Capacity: The vertical upright frames of our Double Deep Pallet Racking can sustain overall load capacities ranging from 10,000 kg to over 25,000 kg per bay, strictly depending on the vertical beam pitch (distance between levels) and the steel gauge used.
- Seismic and Structural Compliance: Every Double Deep Pallet Racking system we manufacture is calculated with rigorous safety factors, utilizing premium Q235B or Q345B industrial steel to meet international structural integrity standards.
| Specification Category | Double Deep Pallet Racking Standard Parameters |
| Load Capacity Per Level | 1,000 kg – 6,000 kg (2,200 lbs – 13,200 lbs) |
| Max Upright Frame Load | Up to 25,000 kg (Depending on Double Deep Pallet Racking design) |
| Upright Frame Height | 2,000 mm – 12,000 mm (Customizable for high-bay storage) |
| Beam Length | 1,200 mm – 4,000 mm (Calculated based on pallet dimensions) |
| Material Standard | High-tensile Q235B / Q345B Industrial Cold-rolled Steel |
| Aisle Width Requirement | Minimum 2,600 mm – 3,200 mm (Requires a specialized reach truck for Double Deep Pallet Racking) |
| Surface Treatment | Epoxy Powder Coated or Hot-dip Galvanized for outdoor/cold room Double Deep Pallet Racking |
| Standard Color Options | Blue (Uprights) & Orange (Beams) / Custom RAL colors available |
| Pitch / Adjustability | 50 mm, 75 mm, or 76.2 mm (3 inches) vertical adjustability |
| Industry Compliance | Designed to meet CE, ISO9001, AS4084, and RMI standards for Double Deep Pallet Racking |
What are the Best Applications for Double Deep Pallet Racking?
A Double Deep Pallet Racking system is the ideal high-density storage solution for warehouses that need to store large quantities of the same SKU. It offers the perfect balance between maximizing storage capacity and maintaining acceptable pallet accessibility.
Cold Storage & Freezer Warehouses
Maximizing expensive refrigerated floor space is critical. A Double Deep Pallet Racking layout significantly increases the number of pallet positions per square meter, reducing overall cooling costs.
Food and Beverage Industry
Perfect for storing high volumes of uniform products with a medium-to-fast turnover rate, efficiently utilizing the LIFO (Last-In, First-Out) method within the Double Deep Pallet Racking.
High-Volume Manufacturing
Ideal for holding bulk raw materials or finished goods where multiple pallets of identical items are produced and stored together in a Double Deep Pallet Racking system.
What are the common issues with double deep racking?
A: Double Deep Racking is a high-density warehouse storage system that stores pallets two rows deep instead of one. By placing standard racks back-to-back, Double Deep Racking eliminates unnecessary aisles and increases overall warehouse storage capacity by up to 50%.
A: The primary difference is storage depth and accessibility. Standard selective racking stores pallets one deep, offering 100% direct access to every pallet. Double Deep Racking stores pallets two deep, which significantly increases storage density but requires you to remove the front pallet before accessing the rear one.
A: To operate Double Deep Racking safely and efficiently, you must use a specialized deep-reach forklift or a reach truck equipped with telescopic forks (pantograph). Standard warehouse forklifts do not have the extended reach necessary to access the second pallet position in a Double Deep Racking system.
A: Double Deep Racking operates as a Last-In, First-Out (LIFO) storage system. Because the rear pallet is blocked by the front pallet, the last pallet placed into the rack must be the first one removed. It is highly recommended for storing multiple pallets of the same SKU.
A: * Higher Density: Increases pallet storage capacity by 30% to 50%.
- Space Optimization: Reclaims valuable floor space by reducing the number of forklift aisles.
- Cost-Effective: Provides a much lower cost per pallet position compared to automated systems.
- Cold Storage Ideal: Maximizes expensive refrigerated warehouse footprints.
Costs swing based on height, capacity, bay count, and current steel prices. Always get custom quotes – Aceally Pallet Racking supplier details matter!
Heights usually run 8-12 ft; beam lengths (often 8-10 ft) depend on your pallet depth including overhang. Crucially, match this to your forklift’s reach capability.
A: Double Deep Racking is the perfect solution if your facility stores large volumes of identical SKUs, can operate on a LIFO system, and needs to maximize space without a costly building expansion. Not sure about the layout? Contact our engineers for a free Double Deep Racking floor plan design and quote.
Industries Best Suited for Double Deep Racking
Not every business model aligns with high-density, Last-In, First-Out (LIFO) storage. However, specific sectors experience transformative growth and cost savings when transitioning to this layout. The industries best suited for double deep racking typically share a common trait: they handle high volumes of identical SKUs where immediate access to every single pallet is not a strict requirement.
Cold Storage and Refrigerated Warehousing
Operating a cold storage facility involves immense energy costs, making every cubic meter of refrigerated space incredibly valuable. Double deep racking allows you to store up to 30% more product within the exact same chilled footprint compared to standard selective setups. By condensing the storage area, you reduce the volume of empty air that requires continuous cooling, directly lowering your utility expenditures.
Food and Beverage Distribution
The food and beverage industry frequently deals with bulk shipments of identical items with moderate turnover rates. Since these products are often processed in large batches, the LIFO inventory rotation inherent to double deep racking naturally aligns with the dispatch of non-perishable or long shelf-life goods. It enables you to stage large orders efficiently, grouping identical beverages or canned goods in deep slots ready for bulk outbound shipping.
High-Volume Manufacturing
If you run a manufacturing plant, raw materials and finished goods often require substantial staging areas. High-volume manufacturers utilize double deep racking to stockpile essential raw components near the production line or to house finished products awaiting distribution. This method prevents floor clutter and ensures that production bottlenecks are not caused by a lack of raw material storage.
| Industry Sector | Primary Storage Challenge | How Double Deep Racking Solves It |
| Cold Storage | High energy costs per square foot | Increases storage density, reducing chilled air space. |
| Food & Beverage | Large batch processing | Groups identical SKUs efficiently for bulk distribution. |
| Manufacturing | Raw material staging space | Condenses bulk storage near active production lines. |
Pallet Types Compatible with Double Deep Racking
The structural integrity of your storage heavily depends on the foundation you place your goods upon. Because specialized reach trucks must extend their forks deeply into the rack structure, using the correct pallet types compatible with double deep racking is non-negotiable. Substandard or incorrect pallets will lead to hazardous deflection, jamming within the rack, or total load collapse.
Heavy-Duty Wooden Pallets
Standard, high-quality wooden pallets—such as GMA (Grocery Manufacturers Association) or standard Euro pallets—are generally acceptable, provided they are in excellent condition. You must ensure these wooden pallets have sturdy, unbroken bottom boards. Because the pallet in the rear position is pushed and retrieved by a deep reach forklift, any compromised wood can splinter, causing the pallet to snag on the beams or guide rails.
Industrial Plastic Pallets
For operations requiring strict hygiene, such as pharmaceuticals or food handling, heavy-duty plastic pallets are highly recommended. These pallets are engineered with exact dimensional consistency, eliminating the risk of protruding nails or splintered wood. Their rigid structure minimizes deflection when resting on the beams of double deep racking, ensuring smooth sliding and retrieval operations deep within the bay.
Galvanized Metal Pallets
When you are handling exceptionally heavy loads, such as automotive parts or dense raw materials, galvanized metal pallets provide the ultimate durability. Metal pallets do not warp, bend, or degrade under immense weight. They offer a secure, rigid base that interacts perfectly with the deep-reach mechanisms, guaranteeing that your heavy inventory remains stable even in the furthest rear positions of your double deep racking.
How to Improve Warehouse Efficiency Using Double Deep Racking?
Floor Space and Aisle Reduction
The most immediate efficiency gain comes from layout optimization. By storing pallets two deep, you effectively eliminate alternating access aisles. This configuration allows you to convert dead aisle space into active storage zones. You can process higher volumes of inventory without needing to lease additional warehouse space. To maintain high efficiency, map out your floor plan so that high-velocity SKUs are placed closer to the loading docks within the front positions, while bulk reserve stock occupies the rear slots.
LIFO Inventory Management
Double deep racking inherently utilizes a Last-In, First-Out (LIFO) stock rotation. To prevent logistical bottlenecks, you must align your Warehouse Management System (WMS) with this LIFO structure. Ensure your software directs forklift operators to deposit identical SKUs within the same double deep lane. Mixing different SKUs in a single front-to-back slot creates a “honeycombing” effect or forces operators to move the front pallet just to access a different product in the rear, which drastically reduces picking speed.
Integrating Specialized Reach Trucks
Standard counterweight forklifts cannot operate within this system. You must deploy specialized deep-reach trucks equipped with pantograph mechanisms or telescopic forks. These trucks are designed to navigate the narrower aisles and safely extend their reach into the second pallet position. Training your operators to proficiently use these specific trucks ensures rapid loading and unloading cycles, minimizing downtime and accelerating your daily throughput.
| Performance Metric | Standard Selective Racking | Double Deep Racking |
| Floor Space Utilization | Approx. 40% | Approx. 60% |
| Storage Density | Moderate | High (Up to 30% increase) |
| Inventory Rotation | FIFO (First-In, First-Out) | LIFO (Last-In, First-Out) |
| SKU Selectivity | 100% | 50% |
Safety Considerations for Operating in Double Deep Pallet Racks
Specialized Forklift Operator Training
Navigating deep-reach trucks requires a higher skill level than operating standard forklifts. You must mandate rigorous, specialized training for all personnel tasked with loading and unloading these systems. Operators must master the use of the pantograph extension, understand how to interpret camera feeds if the trucks are equipped with them, and know how to smoothly guide pallets into the rear slots without impacting the surrounding rack frames.Adhering to Strict Load Capacity Limits
Overloading is a critical hazard in any storage environment, but it is particularly dangerous in high-density setups. You must clearly display the maximum load capacity limits on every level of your double deep pallet racks. Ensure your warehouse staff verifies pallet weights before placing them into the system. If the rear pallet exceeds weight tolerances, it can cause the deep beams to deflect or bow, which may eventually lead to structural failure.Enhancing Visibility and Utilizing Guide Rails
Visibility into the second pallet position is naturally restricted. To mitigate this, ensure your warehouse lighting is optimized specifically for your aisle layouts, illuminating the deep bays clearly. Furthermore, installing pallet guide rails within the racking structure physically assists operators. These rails act as a funnel, safely guiding the pallet into its correct resting position in the rear, preventing horizontal misalignment that could destabilize the rack.Routine Structural Inspections
Daily wear and tear is inevitable in high-throughput environments. Implement a strict schedule for routine structural inspections. Designate trained safety officers to walk the aisles weekly, checking for dented upright columns, bent load beams, or missing safety pins. Because the rear positions are harder to see, special attention must be paid to the structural integrity of the back-to-back connections and the deep-level supports.As a premier manufacturer of industrial storage solutions, Aceally is committed to providing top-tier infrastructure tailored to your exact operational needs. From initial layout design to the final installation of your double deep racking systems, our team ensures your warehouse operates at peak performance. Contact Aceally today.
