Industrial-Grade Impact Protection for Warehouse Racking Systems
Protect your warehouse infrastructure from costly forklift damage with our Heavy-Duty U-Shaped Row End Safety Barrier. Engineered to safeguard the most vulnerable parts of your warehouse racking system—the row ends—this barrier provides a robust physical shield that absorbs high-impact collisions, ensuring structural integrity and personnel safety.
High-Impact Resistance
Fabricated from thickened carbon steel to withstand heavy forklift strikes.
Maximum Visibility
Finished in UV-resistant Safety Orange powder coating for long-range visibility.
Full Row Coverage

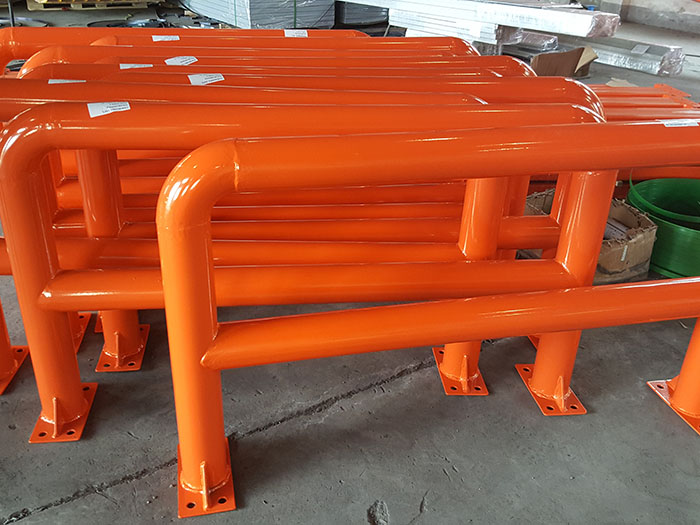

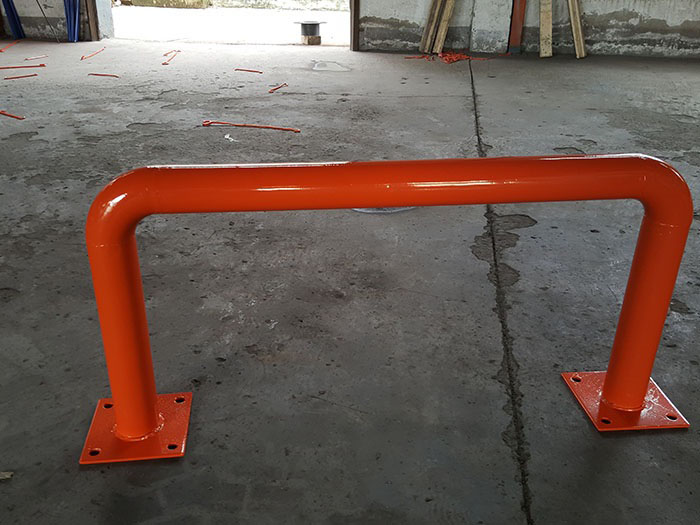

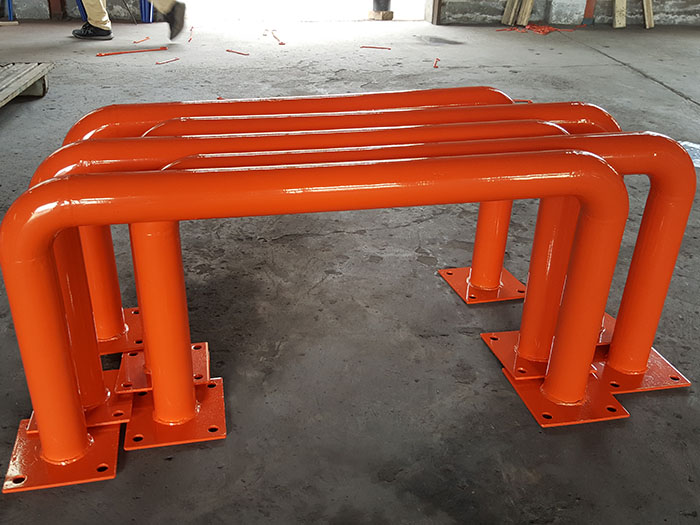

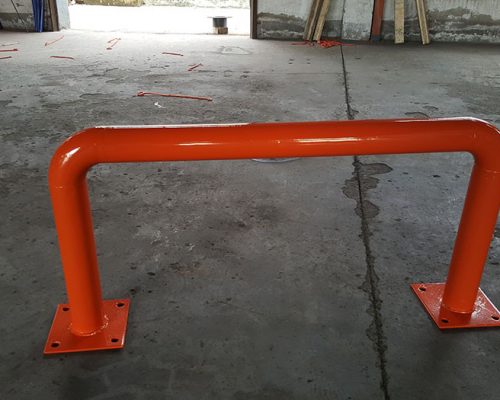

The extended U-shape design protects both corner pillars of a racking row simultaneously.
Technical Specifications
| Material | Industrial Grade Q235 Steel |
| Structure | Seamless Welded U-Shape |
| Standard Heights | 400mm (16″) / 600mm (24″) |
| Pipe Diameter | 76mm / 89mm / 114mm |
| Finish | Electrostatic Powder Coating (Anti-Corrosion) |
| Color | Safety Orange / Yellow / Custom |
The Critical Role of Row End Protection
Statistics in warehouse management show that the vast majority of pallet rack collapses are triggered by accidental damage to the uprights located at the ends of aisles. These areas are high-traffic “danger zones” where forklifts frequently perform sharp turns, making them the most likely collision points. A single impact from a multi-ton forklift can compromise the weight-bearing capacity of your entire racking system.
Our U-Shaped Rack Safety Barriers provide a critical physical buffer, redirecting impact energy away from the rack structure and into the concrete floor, effectively preventing catastrophic failures and ensuring long-term structural integrity.
Engineering Excellence
- Grade A Q235 Steel: Selected for its optimal balance of high tensile strength and ductility to absorb shocks.
- Robotic CO2 Welding: Every joint features deep-penetration welding for zero-defect structural bonds.
- Anti-Corrosion Shield: 5-mil thick electrostatic powder coating protects against rust and chemical exposure.
Safety Compliance
Our barriers are designed to assist facilities in meeting global safety benchmarks, including:
- OSHA 1910.176(a): Ensuring secure storage and clear passage for mechanical equipment.
- RMI Standards: Adhering to Rack Manufacturers Institute recommendations for end-of-row column protection.
Professional Buying Guide: How to Measure
Selecting the right size is crucial for both safety and forklift maneuverability:
Match the depth of your rack (e.g., 42″ for standard single-entry).
Leave a 25-50mm gap between the guard and the rack upright.
Verify that the barrier does not obstruct your forklift’s turning radius.
Frequently Asked Questions
Q: What is the difference between a Rack Protector and a Row End Guard?
A: A Rack Protector is designed to wrap around a single upright, whereas a Row End Guard (U-Shaped Barrier) protects the entire depth of the rack row, shielding both corners from turning traffic.
Q: Do these barriers come with mounting hardware?
A: We offer high-strength expansion anchor kits specifically sized for our base plates as an optional add-on to ensure a turnkey safety solution.
Q: What height is recommended for maximum warehouse safety?
A: 400mm (16″) is the standard for most reach trucks. However, we recommend our 600mm (24″) version for heavy-duty forklift traffic or high-risk loading dock zones.
Installation Guide
- Positioning: Place the barrier at the row end with 25-50mm clearance.
- Marking: Mark the floor through the pre-drilled base plate holes.
- Drilling: Drill holes into concrete using a masonry bit.
- Securing: Drive M12 Expansion Bolts and tighten until secure.
Need a custom size or bulk quote for your project?
Our engineering team is ready to support your warehouse safety layout.
