Is Your Sheet Metal Storage Costing You Time, Space, and Safety?
Traditional horizontal stacking and improvised racking systems create hidden costs that drain your workshop’s efficiency every single day.
Engineered for High-Density Storage & Smart Retrieval
Discover how our heavy-duty rack systems optimize your workshop floor, protect valuable materials, and streamline your cutting machine feeding process.

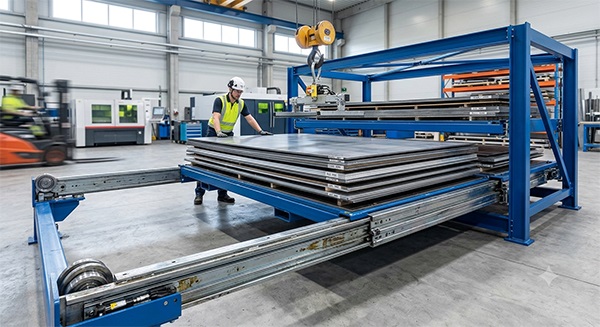

100% Fully Extendable Roll-Out Trays
Every tray can be rolled out completely outside the rack framework. This allows your overhead crane, hoist, or vacuum lifter to access the exact metal plate pack vertically with zero obstruction.
- Zero Forklift Damage: Reduces the need for forklifts to maneuver in tight aisles.
- Single-Operator Control: A single worker can smoothly crank out up to 5 tons of material.

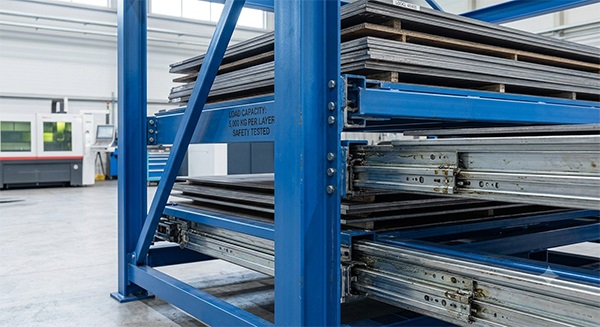

Up to 5,000 kg Load Capacity Per Layer
Built entirely from premium, heavy-gauge structural steel ($Q235/Q355$ equivalent) and reinforced welded joints. Specially designed heavy-duty steel bearings ensure smooth tray movement even under maximum weight capacity.
- Heavy Plate Specialists: Engineered for thick steel, stainless steel, and aluminum packs.
- Tested Safety Factors: Exceeds standard structural loading limits for ultimate workshop safety.

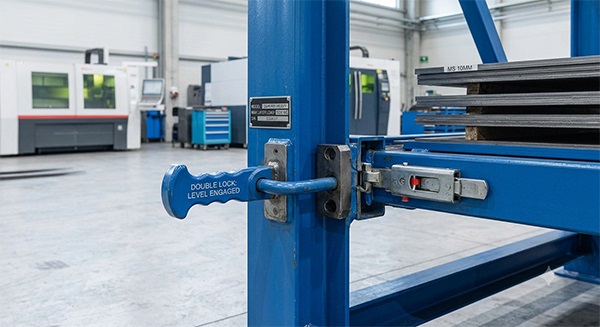

Mechanical Safety Interlocks
Safety is non-negotiable in heavy manufacturing. Our racks feature automatic or manual mechanical locking pins. Trays are securely locked when retracted and can only be pulled out one at a time, eliminating any tipping or accidental movement risks.
Product Types

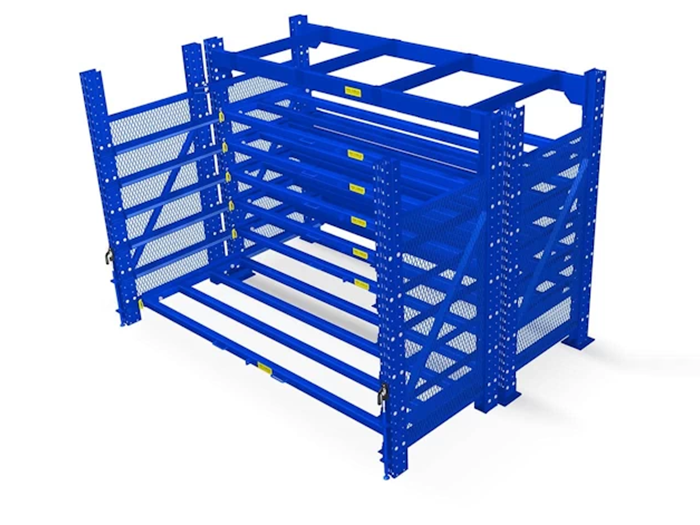

Roll-Out Sheet Metal Racks
100% extendable drawers designed for high-frequency access and ergonomic crane loading. Safely stores up to 5,000 kg per layer.

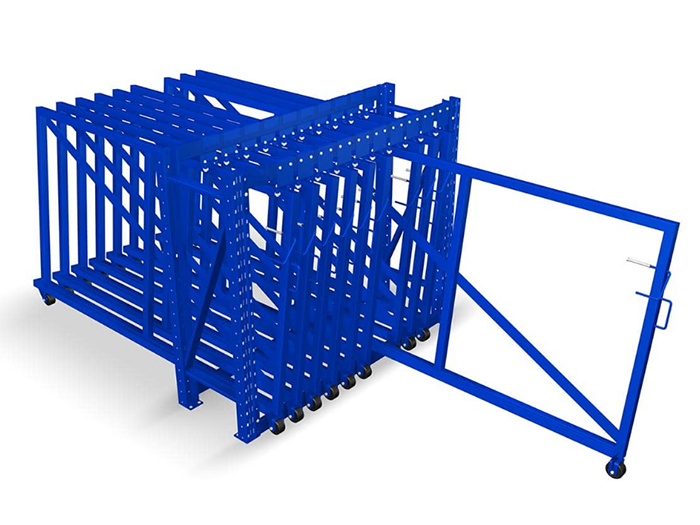

Vertical Sheet Metal Racks
The ultimate space-saver for remnants, small batches, and varied sheet types. Provides 100% visual cataloging and quick manual or light-hoist retrieval.

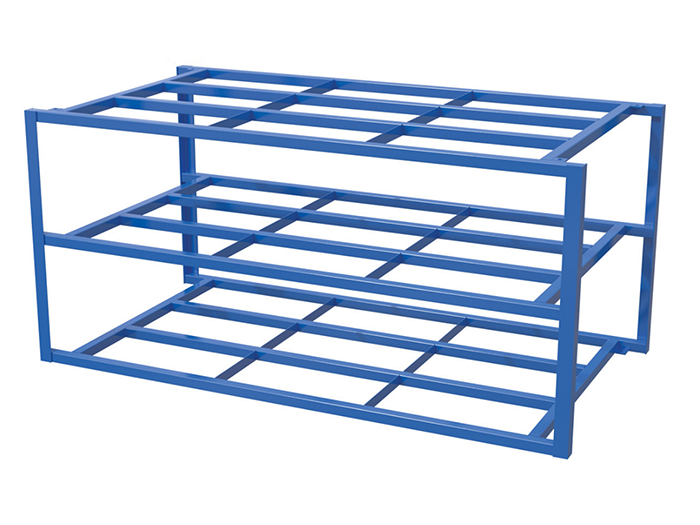

Horizontal Sheet Metal Racks
Cost-effective static shelving for bulk storage and long-term metal pallet stock. Engineered for heavy forklift loading and maximum stack stability.
Technical Specifications & Size Options
Select a rack category below to view standard dimensions, loading capacities, and configurations. Custom sizes are available upon request.
| Model No. | Tray Dimensions (mm) | Max Load / Layer | Available Layers | Operation Type |
|---|---|---|---|---|
| SMR-RO-3015 | 3000 × 1500 | 3,000 kg / 5,000 kg | 4 - 8 Layers | Manual / Crank Handle |
| SMR-RO-4020 Best Choice | 4000 × 2000 | 4,000 kg / 5,000 kg | 4 - 6 Layers | Manual / Crank Handle |
| SMR-RO-CUSTOM | Customized Size | Up to 6,000 kg | Fully Tailored | Electric / Hydraulic |
✓ Standard Configuration: Double mechanical safety locks included. Ideal for high-frequency crane and vacuum lifter loading.
| Model No. | Slot Dimensions (mm) | Max Load / Slot | Compartments | Best For |
|---|---|---|---|---|
| SMR-V-3015 | 3000 × 1500 | 1,500 kg | 5 - 10 Slots | Standard Sheet Storage |
| SMR-V-REMNANT | Custom for Scraps | 1,000 kg | 8 - 12 Slots | Sheet Metal Remnants |
✓ Standard Configuration: Provides 100% visual cataloging and quick manual or light-hoist vertical sorting.
| Model No. | Bay Dimensions (mm) | Max Load / Level | Available Levels | Access Type |
|---|---|---|---|---|
| SMR-H-3015 | 3100 × 1600 | 5,000 kg | 3 - 5 Levels | Heavy Forklift Access |
| SMR-H-4020 | 4100 × 2100 | 5,000 kg | 2 - 4 Levels | Heavy Forklift Access |
✓ Standard Configuration: Cost-effective static shelving optimized for bulk warehouse pallet stock and long-term storage.
Frequently Asked Questions
Got questions about our metal sheet racking systems? Find quick answers regarding customization, shipping, and installation below.
Yes, absolutely. While we have standard models (like 3015 and 4020), over 60% of our industrial racks are fully customized. We can tailor the tray sizes, weight limits (up to 7,000 kg/layer), and total levels based on your specific workshop layout and laser cutting machine specifications.
Safety during transit is our priority. All structural steel components are securely bundled, wrapped in multi-layer protective foam, and anchored firmly inside the shipping container. Critical components like heavy-duty bearings and locking mechanisms are packed in reinforced wooden crates to ensure zero rust or physical damage upon arrival.
The system is engineered for straightforward modular assembly. We provide a complete, detailed installation manual and step-by-step video guide with every shipment. For complex or automated systems, our engineering team is available for remote video synchronization to guide your local team through the setup process.
For standard models, the typical manufacturing lead time is 15–20 days. For fully customized configurations or large-scale workshop projects, it generally takes 25–35 days depending on the structural complexity and our current factory production schedule.
