Technical Specifications
✅ Material: Grade 300+ steel
✅ Finish Options: Zinc-plated, powder-coated, or galvanized
✅ Sizes: Available in standard diameters (e.g., 5/16”, 3/8”) and lengths to fit most racking systems.
✅ Load Capacity: Compatible with racking systems rated up to 10,000+ lbs per beam level.

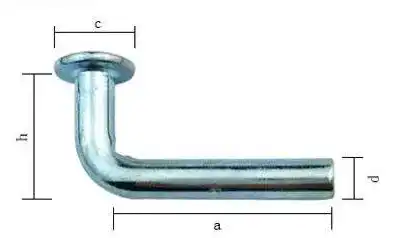

| Parameters | d | ||||
| M4 | M5 | M6 | M7 | M8 | |
| a | 36 | 33 | 33 | 30 | 30 |
| h | 14 | 17 | 18 | 18 | 22.5 |
| c | 10 | 11 | 12.5 | 13 | 13.5 |
